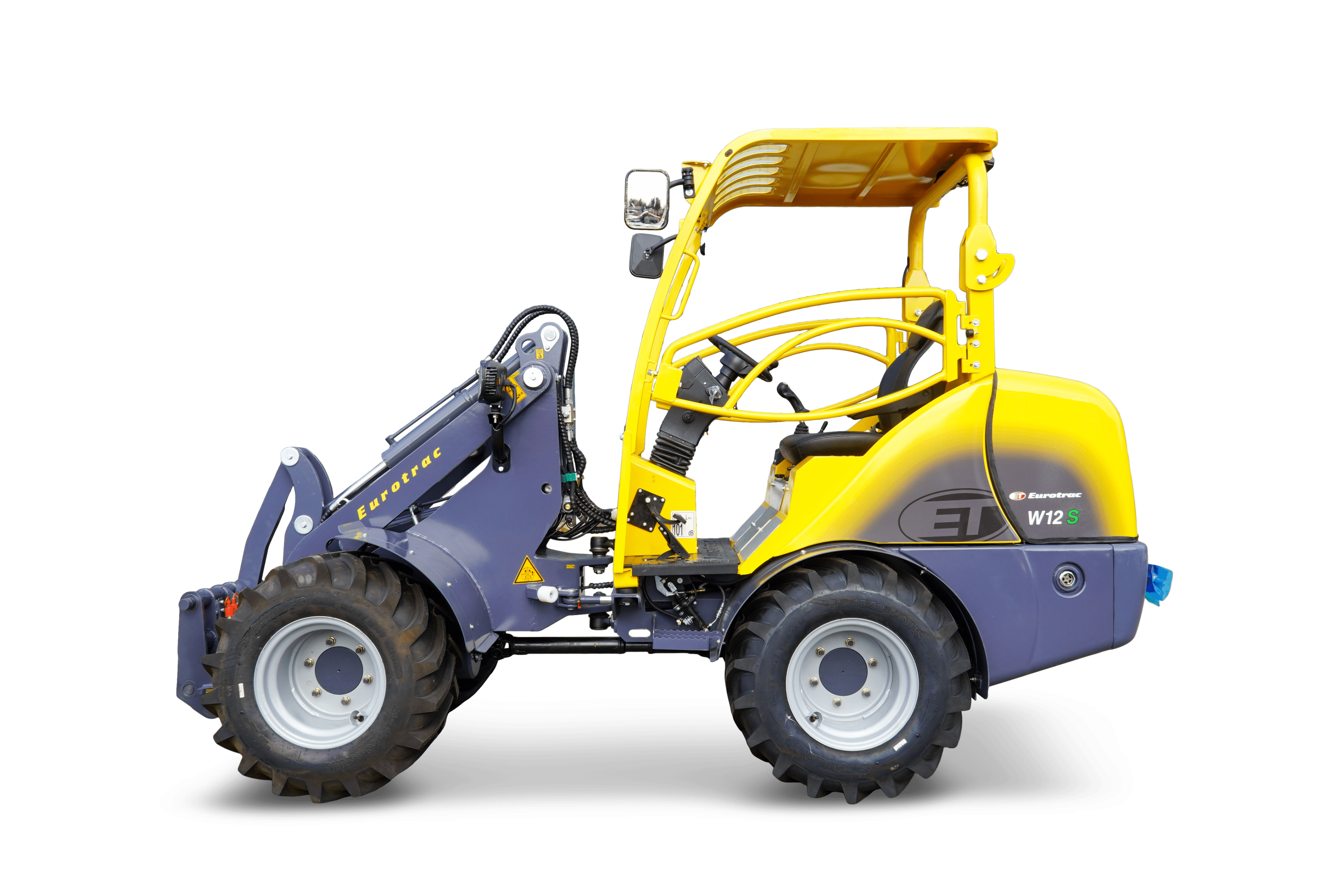

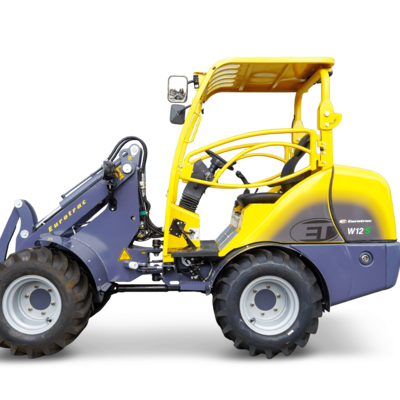

Eurotrac W12 MS

W12 CMS W12 CS W12 ICS W12 IS W12 MS W12 S

The Eurotrac W12-S for agricultural and industrial use

Fitted as standard with:

Kubota Stage-V engine
Extra hydraulic function on joystick
Hydraulic quick coupler
Hydrostatic with 2 travel speeds
Heavy duty axles
Work lights / LED lamps
Wide tyres 31×15.5-15

€27,450.00 excl. VAT

Configure this product

Downloads

Product sheet

Max. lifting height

2600

Engine power

Lifting frame horizontal & machine straight

1300

Own weight

2150

Technical drawing

(A) Overall length with bin: 4360

(B) Overall length without bin: 3440

(C) Bin pivot: 704

(D) Cradle base: 1600

(E) Rear overhang: 1094

(F) Height to top of roof: 2225

(H) Seat height: 1205

(J) Total working height: 3235

(K) Max. lifting height: 2600

(L) Loading height: 2300

(M) Ejection height: 2250

(N) Range (m): 517

(O) Digging depth: 65

(P) Overall width: 1340

(Q) Track width: 980

(S) Ground clearance: 230

(T) Outer diameter: 2597

(U) Turning circle: 3085

(V) Inside turning circle: 1419

(W) Rotation angle: 45

(X) Tilting angle at max. lifting height: 45

(Y) Tipping angle: 45

(Z) Tilt-in angle: 46

Specifications

Electrical information

Battery capacity: 60
Electric system: 12 V

Engine

Engine power: 26

Hydraulic system

Oil yield: 46
Workload: 180 bar

Other

Diesel tank: 45
Hydro tank: 40

Weight

Lifting frame horizontal & machine straight: 1300
Lifting frame horizontal & machine tilted: 840 kg
Max. Lifting capacity: 1350
Own weight: 2150
