Eurotrac W12 CIF

W12 CF W12 CIF W12 CMF W12 F W12 IF W12 MF

The Eurotrac W12-CIF for agricultural and industrial use

Fitted as standard with:

Yanmar Stage-V engine
3 Cylinder, 44 HP

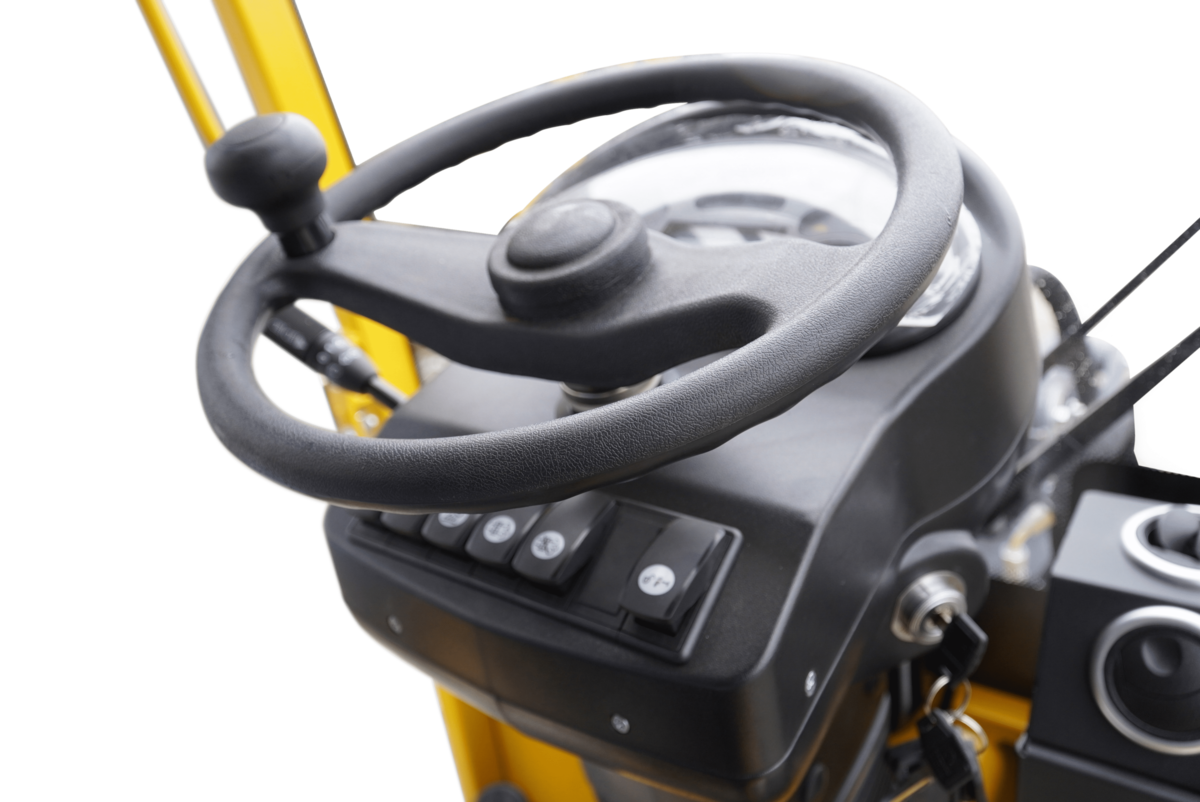

Joystick controls
Extra hydraulic function on joystick
Quick coupler
Hydrostatic with 2 travel speeds
Heavy duty axles with hub reduction
LED lights/working lights
Wide tyres 19.0/45-17

€34,400.00 excl. VAT

Configure this product

Downloads

Product sheet

Max. lifting height

2200

Engine power

Lifting frame horizontal & machine straight

1650

Own weight

2620

Technical drawing

(A) Overall length with bin: 4650

(B) Overall length without bin: 3720

(C) Bin pivot: 710

(D) Cradle base: 1730

(E) Rear overhang: 1140

(F) Height to top of roof: 710

(H) Seat height: 1310

(J) Total working height: 2690

(K) Max. lifting height: 2200

(L) Loading height: 1770

(M) Ejection height: 1625

(N) Range (m): 550

(O) Digging depth: 60

(P) Overall width: 1500

(Q) Track width: 1040

(S) Ground clearance: 255

(T) Outer diameter: 3250

(U) Turning circle: 2750

(V) Inside turning circle: 1500

(W) Rotation angle: 45

(X) Tilting angle at max. lifting height: 48

(Y) Tipping angle: 45

(Z) Tilt-in angle: 50

Specifications

Electrical information

Battery capacity: 70
Electric system: 12 V

Engine

Engine power: 44

Hydraulic system

Oil yield: 50
Workload: 180 bar

Other

Diesel tank: 45
Hydro tank: 40

Weight

Lifting frame horizontal & machine straight: 1650
Lifting frame horizontal & machine tilted: 1000 kg
Max. Lifting capacity: 2000
Own weight: 2620
