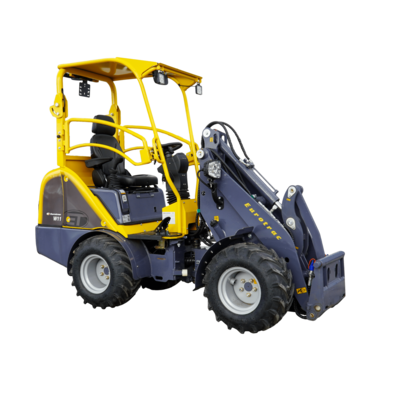

Eurotrac W11 M
The Eurotrac W11 for agricultural and industrial use
Fitted as standard with:

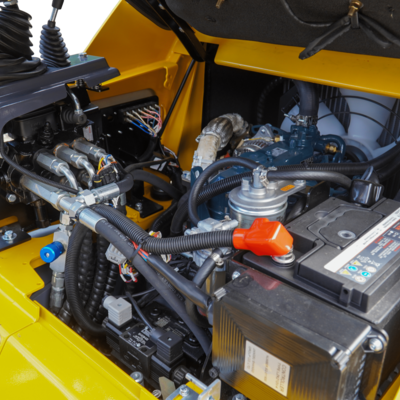

- 3 Cylinder Kubota D1105

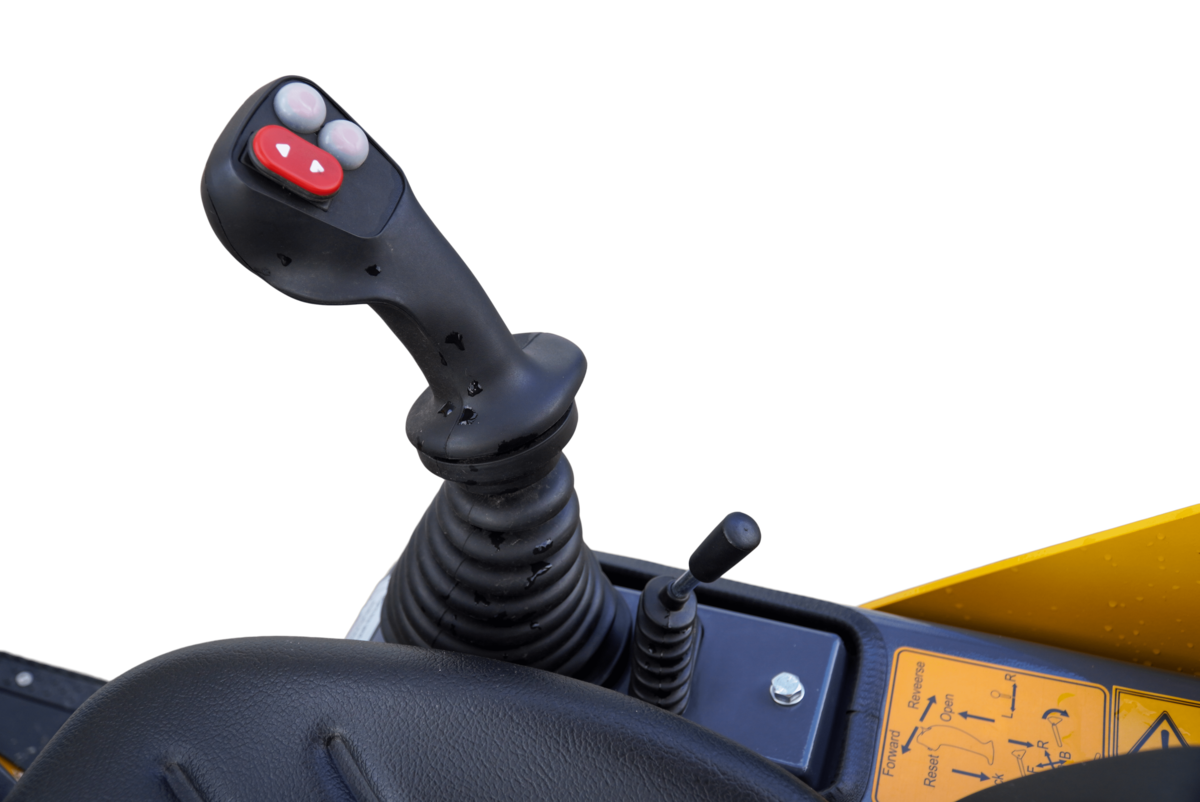

- Joystick control
- Extra hydraulic function
- Quick-change hydraulics
- Hydrostatic drive

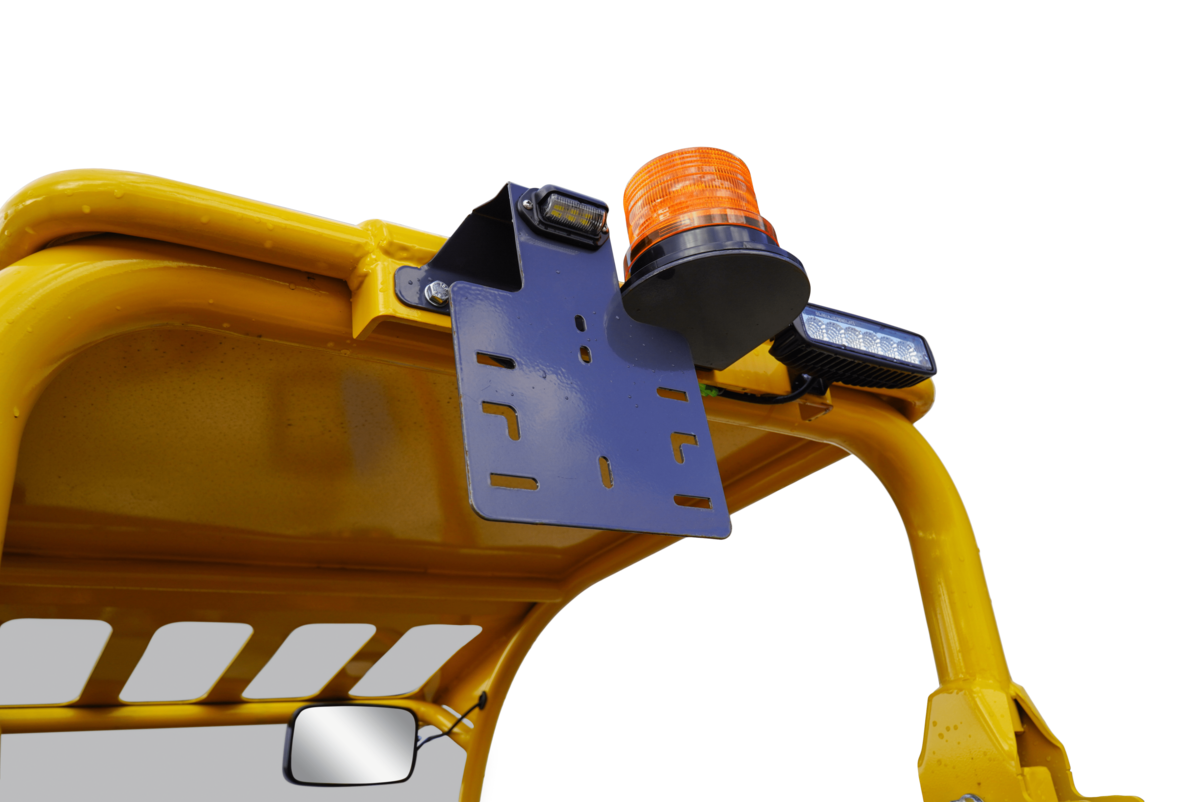

- Light bar / beacon
- Tyre size 26×12-12AS
€22,200.00 excl. VAT
Downloads
Max. lifting height
2550
Engine power
26
Lifting frame horizontal & machine straight
950
Own weight
1560
Technical drawing
- (A) Overall length with bin
- 3780
- (B) Overall length without bin
- 2960
- (C) Bin pivot
- 430
- (D) Cradle base
- 1370
- (E) Rear overhang
- 960
- (F) Height to top of roof
- 2210
- (H) Seat height
- 1128
- (J) Total working height
- 3140
- (K) Max. lifting height
- 2550
- (L) Loading height
- 2350
- (M) Ejection height
- 1760
- (N) Range (m)
- 482
- (O) Digging depth
- 183
- (P) Overall width
- 1109
- (Q) Track width
- 803
- (S) Ground clearance
- 173
- (T) Outer diameter
- 2220
- (U) Turning circle
- 2590
- (V) Inside turning circle
- 1110
- (W) Rotation angle
- 45
- (X) Tilting angle at max. lifting height
- 49
- (Y) Tipping angle
- 43
- (Z) Tilt-in angle
- 50
Specifications
Electrical information
- Battery capacity
- 58
- Electric system
- 12 V
Engine
- Engine power
- 26
Hydraulic system
- Oil yield
- 12
- Workload
- 180 bar
Other
- Diesel tank
- 25
- Hydro tank
- 40
Weight
- Lifting frame horizontal & machine straight
- 950
- Lifting frame horizontal & machine tilted
- 599 kg
- Max. Lifting capacity
- 1100
- Own weight
- 1560
